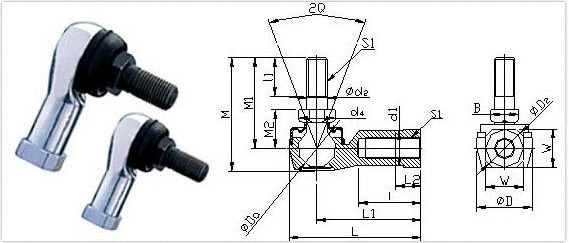

BL Series Ball Joint

BALLJOINT

มิติในหน่วยเมตริก

เชื้อรา

L

ดี

เอ็ม

S1

L1

I

L2

D 1

D2

W

M1

M2

I1

B

ดา

2Q

BL6D

38

16

32.6

M6X1

30

16

5

10

13

11

26

11

11

10

11.112

40

BL8D

45.5

19

38.6

M8X1.25

36

19

6

12.5

16

14

31

14

12

12

12.7

40

BL10D

55.5

25

46.3

M10X1.25

43

23

7

14.5

19

17

37

17

15

14

15.875

40

BL10BD

55.5

25

52.3

M10X1.5

43

23

7

14.5

19

17

43

17

21

14

15.875

40

BL12D

64.5

29

52.7

M12X1.25

50

26

8

17.5

22

19

42

19

17

17

19.05

40

BL12BD

64.5

29

59.7

M12X1.75

50

26

8

17.5

22

19

49

19

24

17

19.05

40

BL14D

74

34

68.4

M14X1.25

57

30

10

20

25

22

56

21.5

22

19

22.225

40

BL14BD

74

34

74.4

M14X2

57

30

10

20

25

22

62

21.5

28

19

22.225

40

BL16D

83

38

74

M16X1.5

64

34

11

22

27

24

60

23.5

23

22

22.225

30

BL16BD

83

38

80

M16X2

64

34

11

22

27

24

66

23.5

29

22

22.225

30
